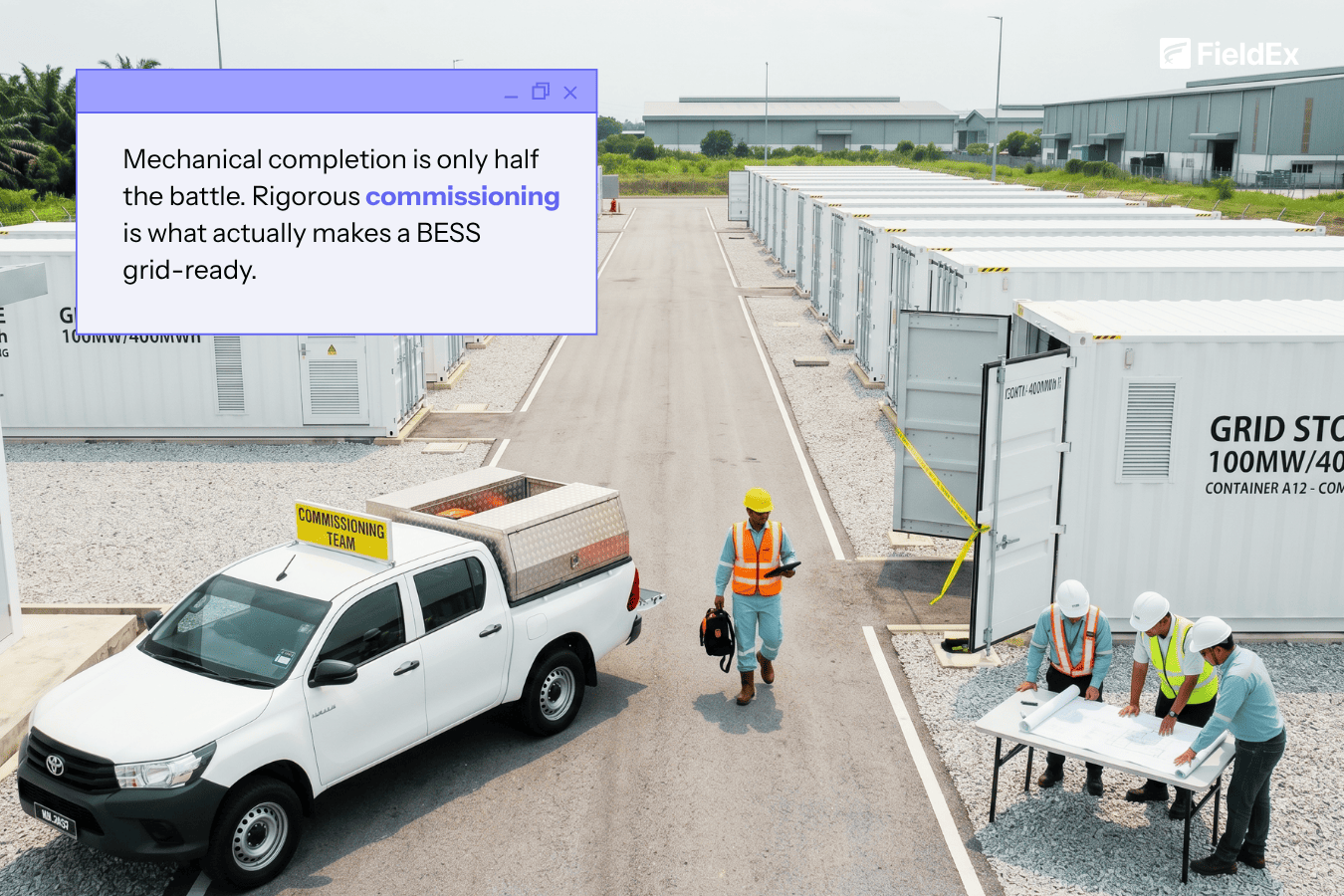

On paper, commissioning a Battery Energy Storage System (BESS) looks like a linear sequence: stack the racks, land the cables, and sync to the grid. In reality, it is the most volatile phase of a project’s lifecycle. Statistics show that nearly 36% of all BESS failures are rooted in integration and construction issues, with the majority surfacing within the first two years of operation.

The most complex "seams" exist where the Battery Management System (BMS) meets the Power Conversion System (PCS) or inverter. These components often come from different manufacturers with different control philosophies. When they don’t speak the same language, the result isn't just a delay – it’s a safety risk. Here are the five most common integration faults that commissioning teams must catch before energization.

What are the most common BESS inverter-to-battery integration faults?

The Direct Answer

The most frequent integration faults include Communication Protocol Mismatches (Modbus/DNP3 mapping errors), DC Polarity Reversal, Incompatible Firmware Versions, Improper Grounding/Bonding, and Sensor Correlation Failures. These issues often stem from "Balance of System" components that were not designed by a single OEM to work together, requiring the commissioning team to serve as the final system integrator.

The 5 Pitfalls Every Commissioning Team Must Avoid

1. The "Protocol Handshake" Failure

Even if both the battery and inverter use Modbus, their "maps" (the addresses for specific data points like State of Charge) may not align.

• The Symptom: The inverter displays a "Communication Loss" or "Unknown Battery Status," preventing the system from entering a charge state.
• The Fix: Perform a point-to-point telemetry check. Verify that the Site Controller is receiving the same SOC (State of Charge) and SOH (State of Health) values that the BMS is reporting.

2. DC Polarity Reversal

In the rush of landing large-gauge DC cables, a single rack or string can be wired backward.

• The Risk: Energizing a reversed-polarity string into a common DC bus can cause an immediate catastrophic failure of the inverter’s DC input stage.
• The Protocol: Mandatory multimeter verification of every single DC string voltage and polarity before the main DC contactors are closed for the first time.

3. Firmware Logic Divergence

The inverter and the battery are often shipped with whatever firmware was current at the time of manufacture, which may be months apart.

• The Pitfall: New BMS safety logic might require a "Pre-Charge" sequence that the older inverter firmware doesn't support, causing a "Soft Start" timeout error.
• The Action: Create a "Baseline Configuration" log. Document the firmware versions of every subsystem and verify compatibility against the manufacturer’s latest integration matrix.

4. Grounding and Insulation Resistance (Megger) Gaps

BESS containers are ungrounded (IT) systems or solidly grounded systems, but unintended paths – like a nicked cable insulation during installation – create "Ghost Faults."

• The Fault: Nuisance tripping of the Inverter’s Insulation Monitoring Device (IMD).
• The Fix: Perform an Insulation Resistance (Megger) test on all DC and AC cabling before the first power-up. A "good" reading is in the megaohms; anything less is a potential fire hazard.

5. Sensor Calibration and "State" Mismatch

The BMS might report "Ready", but the Inverter sees "Fault" because a temperature sensor in the cooling loop is drifted.

• The Problem: The system enters a "Protection Mode" loop where it constantly resets because the safety thresholds of the two machines aren't synchronized.
• The Solution: Use a "Forced State" test. Manually trigger a low-priority alarm to verify that both the Inverter and the Site Controller respond according to the designed Sequence of Operations (SOO).

How do you prevent BESS commissioning delays and integration errors?

The Direct Answer

The key to avoiding commissioning delays is Pre-Energization Verification. This involves a three-step process:

1. Point-to-Point Wiring Audits
2. Firmware Parity Checks
3. Safety System Loop Testing.

‍

By identifying communication gaps and physical wiring errors before high-voltage is applied, teams can reduce troubleshooting time from weeks to days.

Conclusion: Turning a Site into a System

Commissioning is the act of turning a collection of hardware into a unified power plant. The "seams" between the battery and the inverter are where the most significant risks live. By adopting a "Verify-First" mindset and using a structured digital checklist, you move beyond simple installation and into true system integration.
